- Ex Tax: $150.00
- Brand: Pepperl+Fuchs
- Product Code: KFD2-SOT3-EX1.LB.IO
- Availability: In Stock

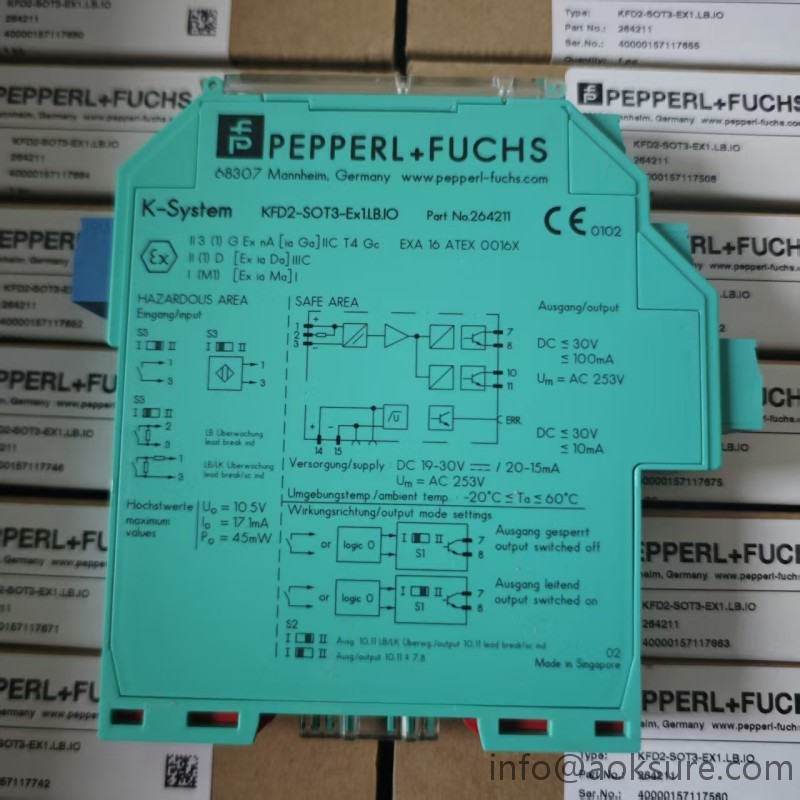

KFD2-SOT3-EX1.LB.IO Switch Amplifier Pepperl+Fuchs
specifications
Mass approx.150 g
Dimensions 20 x 119 x 115 mm(0.8 x 4.7 x 4.5 inch)(W x H x D),housing type B2
Mounting on 35 mm DIN mounting rail acc.to EN 60715:2001
Degree of protection IP20
Connection screw terminals
Supply
Connection Power Rail or terminals 14+,15-
Rated voltage 19...30 V DC
Ripple ≤10%
Rated current 20...15 mA
Power dissipation ≤1 W including maximum power dissipation in the output
Transfer characteristics
Switching frequency ≤5 kHz
Ambient conditions
Ambient temperature-20...60°C(-4...140°F)
Features
1-channel isolated barrier
24 V DC supply(Power Rail)
Dry contact or NAMUR inputs
Usable as signal splitter(1 input and 2 outputs)
Isolated passive transistor output,non-polarized
Isolated passive fault output,non-polarized
Line fault detection(LFD)
Reversible mode of operation
Up to SIL 2(SC 3)acc.to IEC/EN 61508
