Description

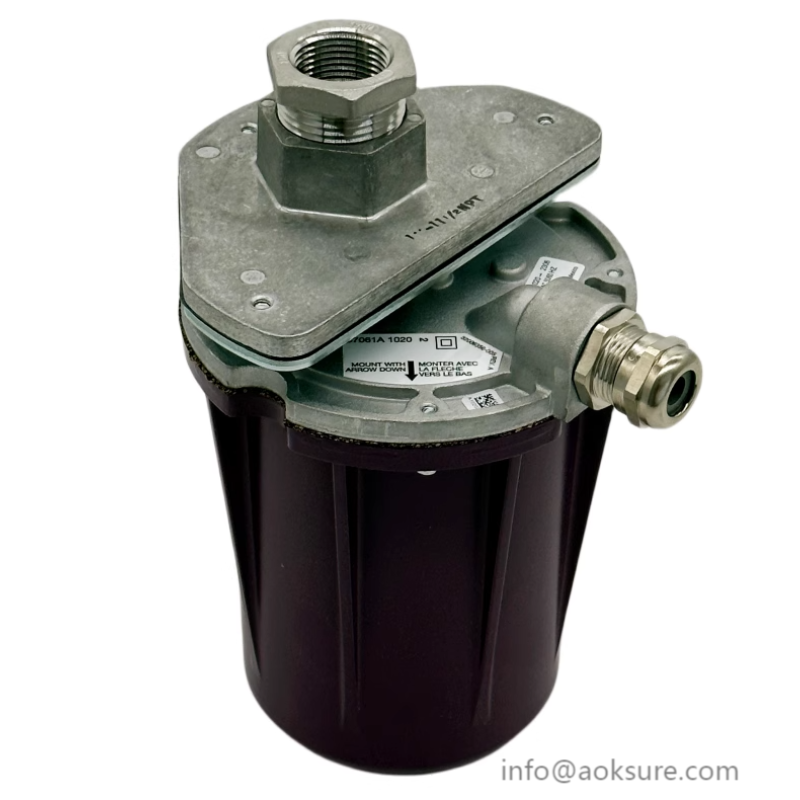

C7061A1020 FLAME DETECTOR

The Honeywell C7061A1020 is a Dynamic Self-Check Ultraviolet (UV) Flame Detector designed for industrial fire and flame detection applications. The C7061A1020 is a dynamic self checking flame detector for sensing the ultraviolet radiation generated by the combustion of gas, oil, or other fuels.

The model C7061A1020 for use in Standard applications. The flame detector is designed for use with either:

R7861A Dynamic Self-Check Ultraviolet amplifier and,

• 7800 SERIES Burner Programmers

R8001S1071 Dynamic Self-Check Ultraviolet Module and,

• SLATE Burner Management System

These configurations provide a closed-loop, self-checking

circuit, which ensures the integrity of both amplifier and

flame detector. Improper response simulated flame loss

results in a safety shutdown and/or alarm

Key Features:

1.Ultraviolet(UV)Flame Detection

Detects flames by sensing UV radiation(typically in the 180–260 nm range),making it suitable for detecting hydrocarbon-based fires(e.g.,gas,oil,solvents).

Immune to visible light and most artificial light sources,reducing false alarms.

2.Dynamic Self-Check Technology

Continuously monitors its own optical integrity and circuitry to ensure reliable operation.

Alerts users if the sensor is dirty,blocked,or malfunctioning.

3.Fast Response Time

Typically responds to flames in milliseconds,making it ideal for high-risk environments.

4.Robust Industrial Design

Built to withstand harsh environments(e.g.,high temperatures,vibration,corrosive atmospheres).

Suitable for use in oil&gas,power plants,chemical plants,and aerospace applications.

5.Relay Outputs&Configurable Settings

Provides relay contacts for fire and fault signals.

Adjustable sensitivity and time delays to optimize performance.

Specification

Ambient Operating temperature ratings	-40°C to +70°C (-40°F to +160°F) (derate ambient 1°F for every 13°F of aspirator
Storage temperature ratings	-51°C to +85°C (-60°F to +185°F)
Voltage and Frequency (applies to shutter)	115/230 VAC, 50/60Hz
Flame Signal	SLATE: 2.0 to 8.0 Volts R7861A: 1.25 to 5.0 Volts
Flame Signal amplifier	R8001S1071 Dynamic Self-Check Ultraviolet Amplifier Module R7861A1026, 1034 Dynamic Self-Check Ultraviolet amplifier (Order separately)
Shutter frequency	0.2 Hz, nominal. Interrupts the line-of-sight of the detector about 12 times per minute to provide self-checking. Any malfunction in the flame detection system results in a safety shutdown
Pressure rating of quartz viewing window	138 kPa (20 psi) maximum
Enclosure	Meets IP66 enclosure requirements (indoor, outdoor protection; rain-tight, dust-tight, hose-directed water)
Weight	3.3 kg (7.3 Ib)
Mounting and orientation	Mounting flange with 1-i n c h NPT internal threads for attaching to sight pipe, including 1 to 3/4-inch adapter bushing for 3/4-inch mount
